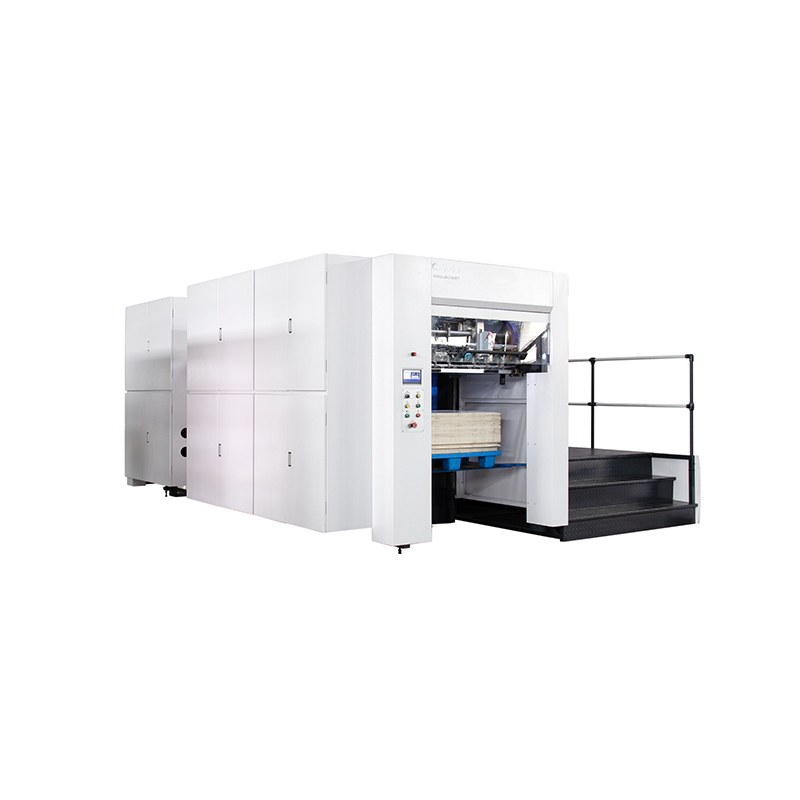

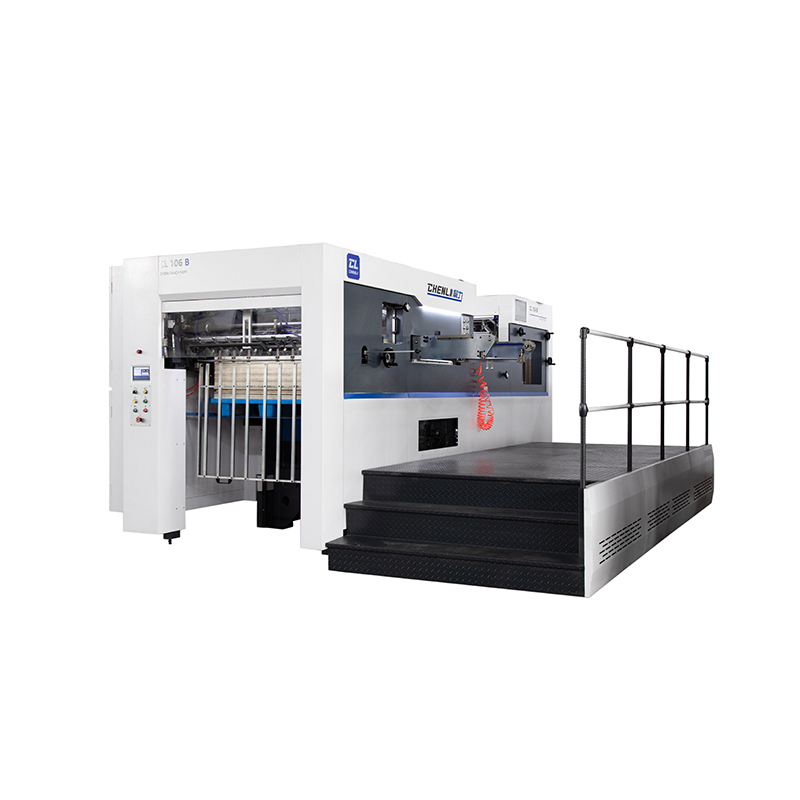

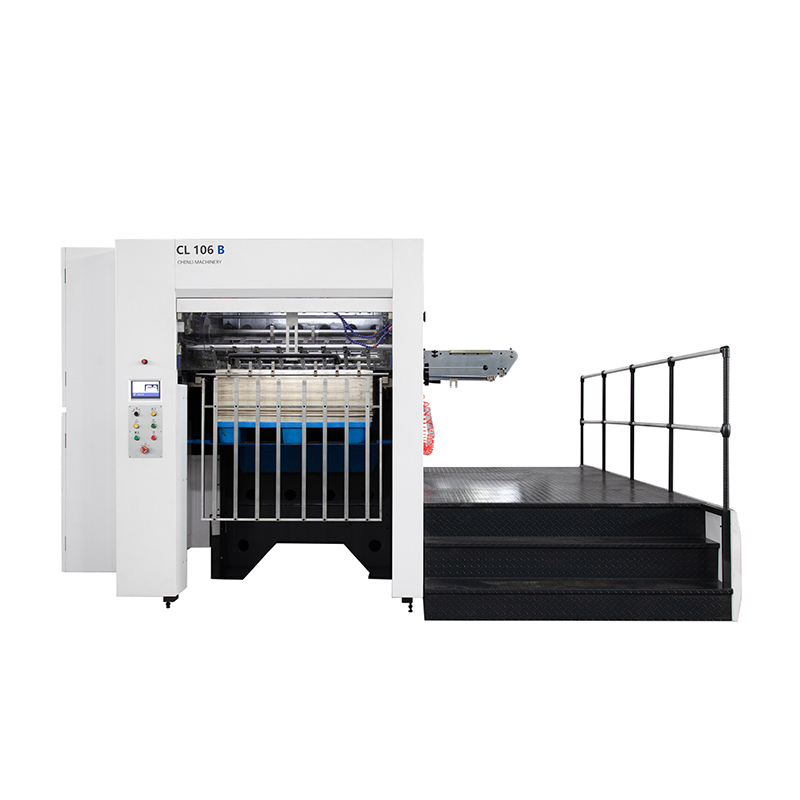

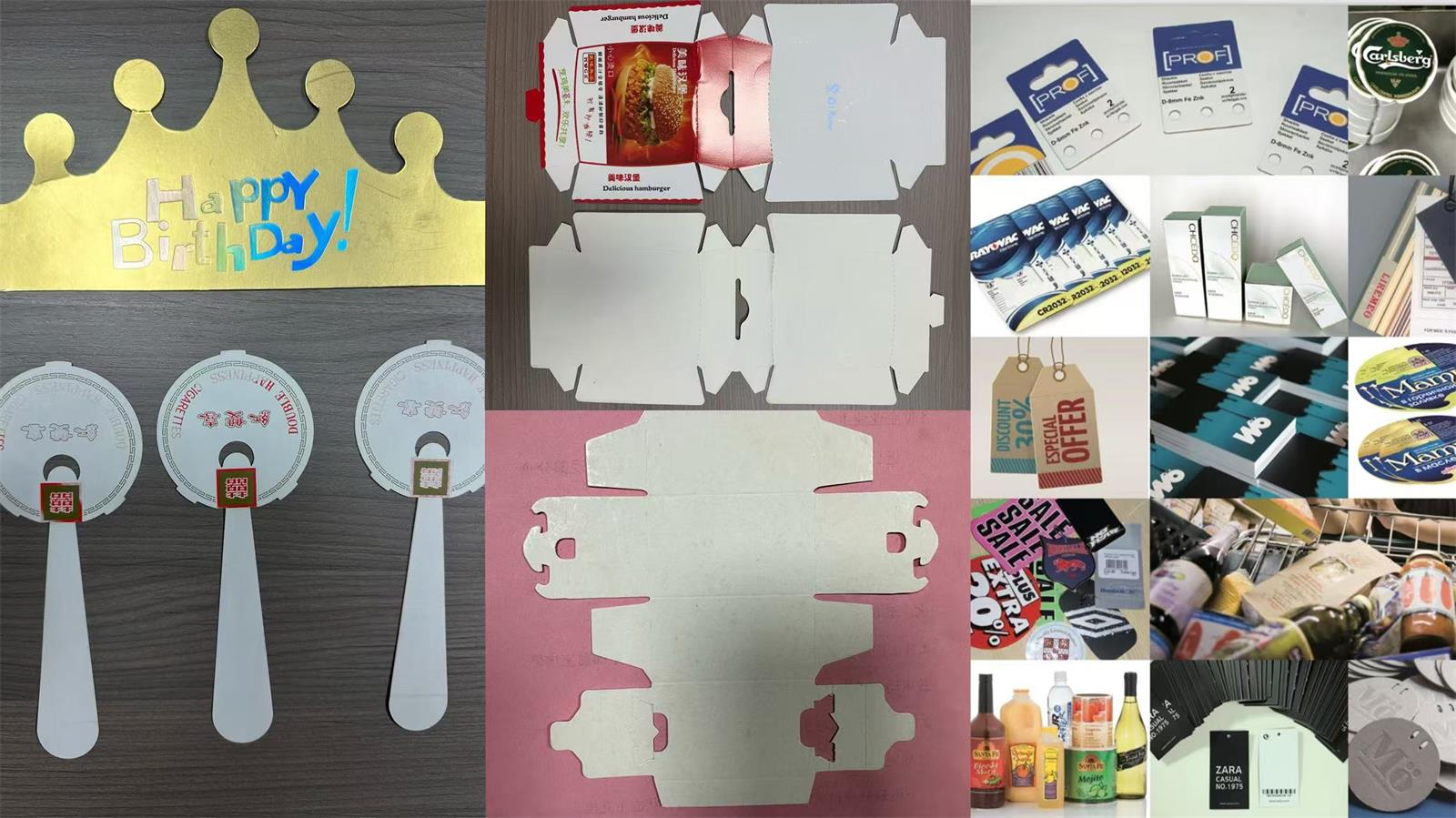

Automatic die-cutting machine is the key device for the production of cartons, paper boxes and high standard paper products,and plastic products etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes.This machine adopts a motion control system for integrated assembly, transportation, and installation, which is convenient for operation, greatly reduces processing costs, runs more stably, The precise assembly and high configuration make it better than Taiwan machines, and competitive with Japan machines.
Technical Parameter:
| Model | CL-106B | CL-106AR(加重、加热) |
| Maximum Sheet Size | 1070X790mm | 1060X760mm |
| Minimum Sheet Size | 400X380mm | 400X350mm |
| Maximum Cutting Size | 1060X760mm | 1060X745mm |
| Gripper Margin | ≥5 | 9-17mm |
| Cutting Rule Height | 23.8mm | 23.8mm |
| Inner Chase Size | 1090X790mm | 1090X790mm |
| Stock Range | 80-1000g/m2卡纸，≤4mm 瓦楞纸 | |
| Maximum Cutting Pressure | 300T | "600T |
| Maximum Working Speed | 7500s/h | 7500s/h |
| Maximum Pile Height at Feeder | 1630mm(含木托板) | 1630mm(含木托板) |
| Maximum Pile Height at Delivery | 1480mm(含木托板) | 1480mm(含木托板) |
| Machine Dimensions(L*W*H)" | 5600X4100X2300" | 6700X4516X2500 |
| Net Weight of Machine | 15T | |
| Main Motor Power | 11kw | |
| Total Power Required | 17KW" | |
| Air Requirement | 压力Air pressure:0.6-0.7Mpa;流量Flowrate:>0.37m'/min | |
