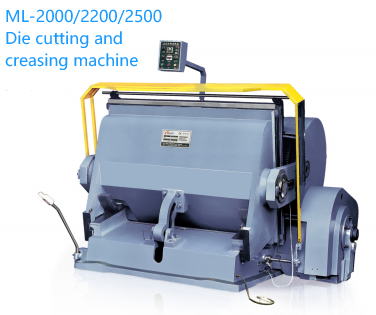

ML-2000/2200/2500 Die cutting and creasing machine

Application: It is used for die cutting and creasing various paper, paperboard, corrugated board, with functions of single pressing & cutting, continuous pressing & cutting and open time-delay, time delay range is adjustable.

Model:
ML-2000/2200/2500
Brand:
CHENLI

Availability:

Quantity:



Inquire Add to Basket

die cutting machine

Product Description

Model	Inner Chase Size(mm) 板框内尺寸	Speed strokes/min 工作速度	Max.Rule Length(m) 压痕线切长度	Motor Power 电机功率	Net weight (KG)	Gross weight （KG)	Packaging size 包装尺寸
ML2000	2000*1400	13±2	<75	15kw-6H	11800	12000	3130×2230×2200
ML2200	2200*1400	13±2	<75	15kw-6H	12800	13000	3330×2230×2300
ML2500	2500*1400	11±3	<80	22kw-6H	14800	15000	3500×2230×2300
