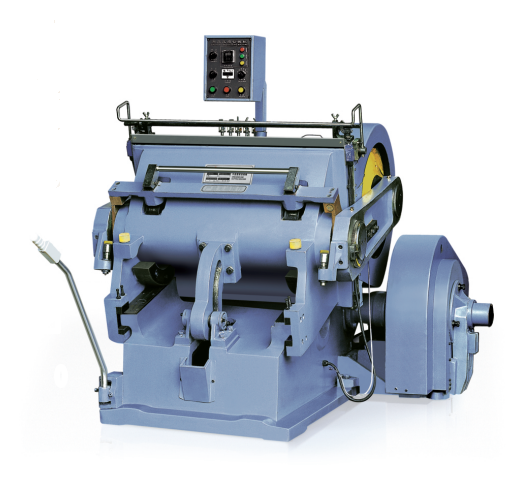

ML-930/1040 Die Cuttig and Creasing Machine

Application: It is used for die cutting and creasing various paper, paperboard, corrugated board, with functions of single pressing & cutting, continuous pressing & cutting and open time-delay, time delay range is adjustable.

Model:
ML-930/1040
Brand:
CHENLI

Availability:

Quantity:



Inquire Add to Basket

die cutting and creasing machine

Product Description

Parameters

Technical Parameters: ML-930/1040

Model	Inner Chase Size(mm)	Speed strokes/min	Max.Rule Length(m)	Motor Power	Weight(t)	Overall Dimensions(mm)

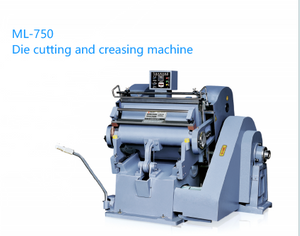

ML750	750*520	26±2	＜18	2.2kw	2.0	1350×1500×1600
ML930	930*670	23±2	＜25	4kw	3.0	1650×1850×1650
ML1040	1040*720	23±2	＜30	4kw	3.5	1750×2000×1650
ML1100	1100*800	20±2	＜35	4kw	4.5	1950×2100×1750
ML1200	1200*820	20±2	＜37	4kw	4.8	2000×2100×1750
ML1300	*1300920**	16±2	＜45	5.5kw	5.5	2350×2100×1700
ML1400	1400*1000	15±2	＜48	5.5kw	6.2	2450×2100×1800
ML1500	1500*1050	14±2	＜50	5.5kw	6.5	2550×2100×1800
ML1600	1600*1250	13±2	＜55	11kw	11	2780×2300×2400
ML1800	1800*1300	13±2	＜65	11kw	12	2980×2300×2500

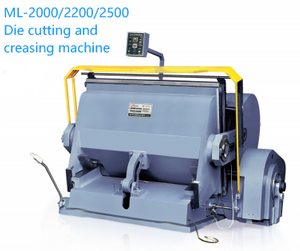

ML2000	2000*1400	13±2	＜75	15kw	14.5	3180×2400×2580
ML2200	2200*1400	13±2	＜75	15kw	15	3380×2400×2580
ML2500	2500*1400	11±3	＜80	22kw	16.5	3680×2400×2580
